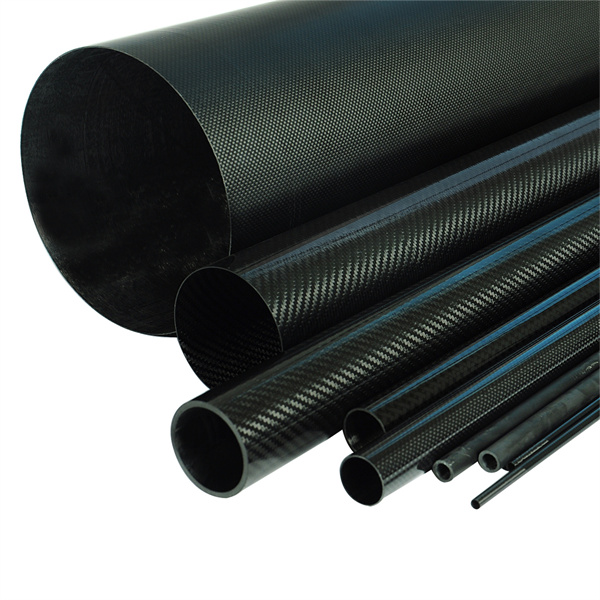

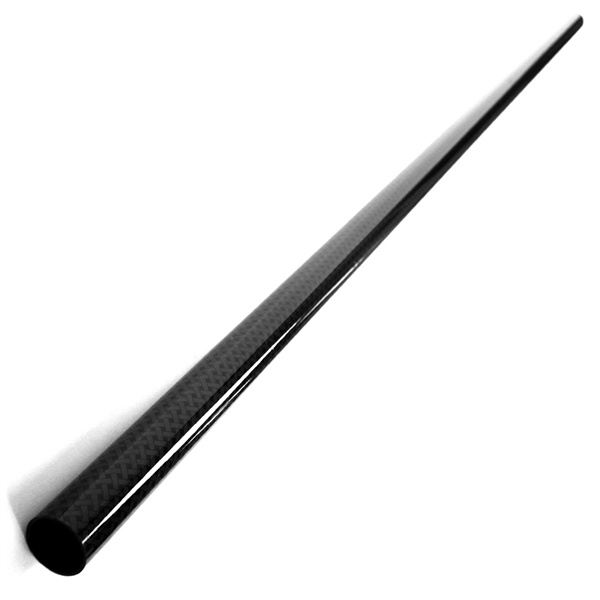

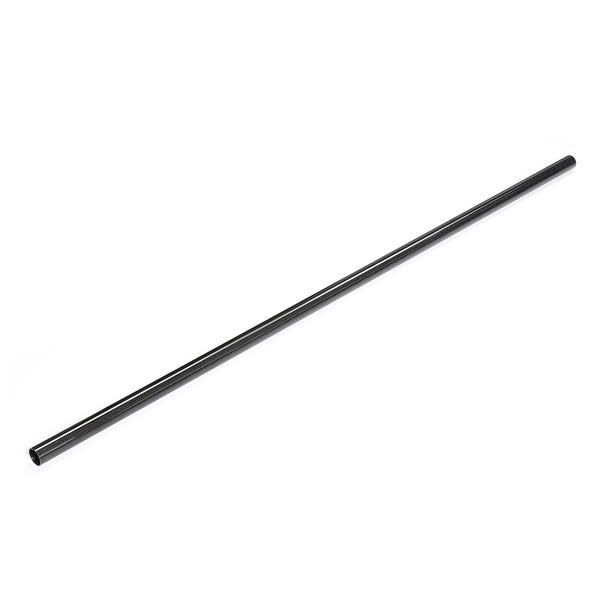

Xinbo Composites supplies carbon fiber poles in a wide selection of lengths, diameters, thicknesses, and layup designs to meet specific application requirements. This flexibility allows for tailored solutions for various industries.
Material: Standard Modulus / Intermediate Modulus / High Modulus / Ultra High Modulus Carbon Fiber
Patterns: UD, Twill or Plain
Max Diameters Range: up to 500 mm
Wall Thickness: 0.6 - 50 mm
Max Lengths: Up to 6000 mm
OD Tolerances: Raw Tubing: ±0.1mm
Polished Tubing: ±0.02mm ~ ±0.05mm, Painted Tubing: ±0.10mm
Surface Finish: Raw, Polished, Glossy & Matte Clear Coated
CNC Machining: Drilling, Cutting, Grinding, Slotting, Milling Holes
Assembly and Bonding: we use the strongest adhesive and bonding tubes with aluminum or plastic parts, and assemble them as customers' requirements.
Xinbo Composites supplies high-quality carbon fiber tubes for your projects, with customized dimensions, surface finishes, CNC machining and mechanical strengths.
1. Lightweight than Stainless Steel, Aluminum
2. Excellent strength, superior stiffness
3. Good Fatigue Resistance
4. Anti-Corrosion
5. Low Thermal Expansivity
6. Low Density
7. Exceptional Durability
1. Roll-Wrapping
Carbon Fiber Tubes are manufactured using multiple layers of prepreg carbon fiber. The number of layers allows us to vary the orientation of the fibers throughout the thickness, creating high-performance products according to per client’s requirements. With 3k weave or UD surfaces,
2. Filament winding
Filament wound carbon fiber tubes have very long continuous fibers which add to the strength and stiffness of the structure. The manufacturing process allows for longer carbon fiber tubes than our standard roll-wrapping process.
3. Pultrusion
Pultruded carbon fiber tube are produced by pulling linearly oriented carbon fiber ton through a resin bath and then a series of tooling to create the specified inner and outer diameter tubes. The composite tube is then heated to cure it. Carbon tubes are high tensile due to the unidirectional fibers.
Robotics and Automation
Telescopic pole systems
Metrology instrumentation
Carbon fiber Idler rollers, driveshaft
Drone components
Telescopes
Industrial machines
Aerospace applications
Sporting goods
