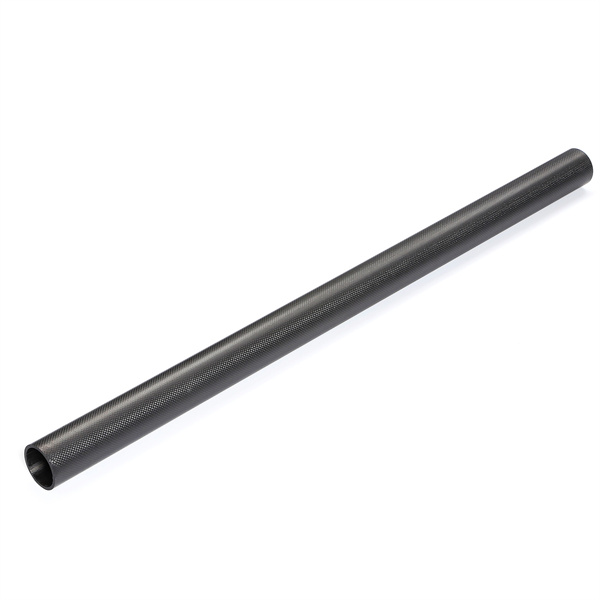

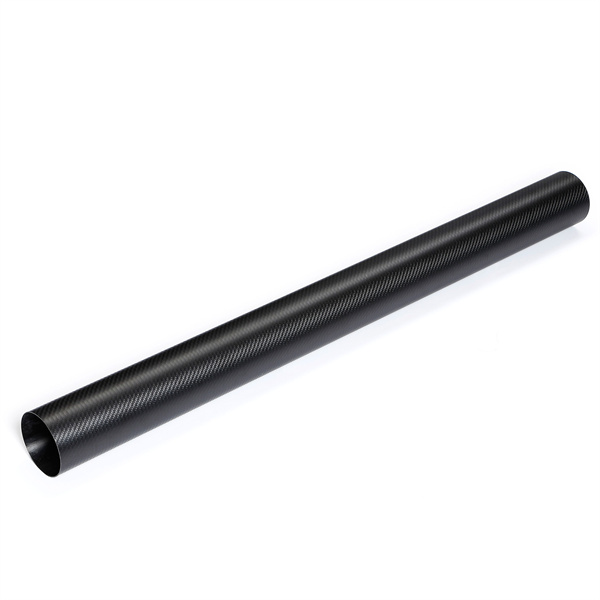

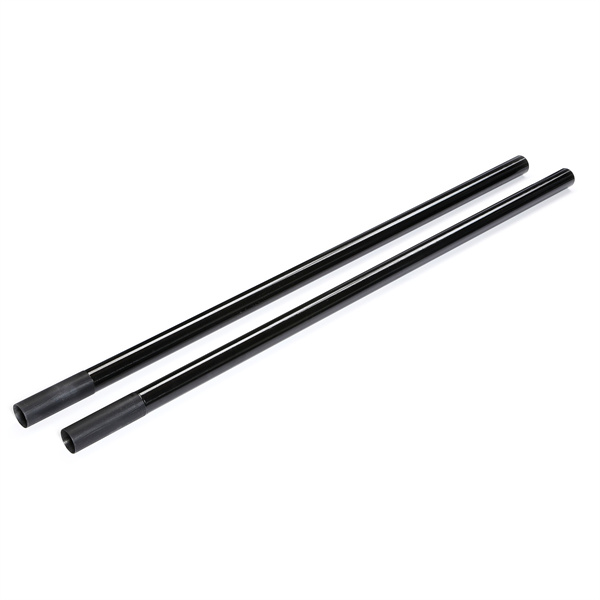

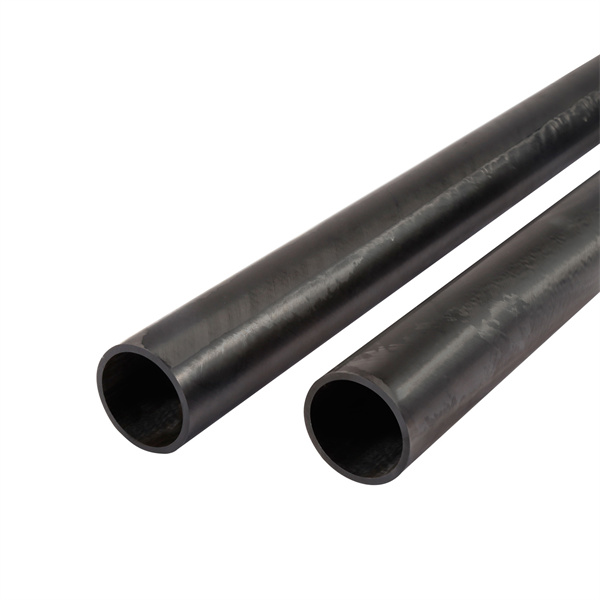

Xinbo Composites customizes roll wrapped carbon fiber tubes in a wide selection of lengths, diameters, thicknesses, and layup designs to meet specific application requirements.
Material: Standard Modulus / Intermediate Modulus / High Modulus / Ultra High Modulus Carbon Fiber
Patterns: UD, Twill or Plain
Diameters Range: 5 - 500 mm
Wall Thickness: 0.6 - 50 mm
Lengths: Up to 6000 mm
OD Tolerances: Raw Tubing: ±0.1mm
Polished Tubing: ±0.02mm ~ ±0.05mm, Painted Tubing: ±0.10mm
Surface Finish: Raw, Polished, Glossy & Matte Clear Coated
CNC Machining: Drilling, Cutting, Grinding, Slotting, Milling Holes
Assembly and Bonding: we use the strongest adhesive and bonding tubes with aluminum or plastic parts, and assemble them as customers' requirements.
Roll roll-wrapped carbon fiber tube is made by roll roll-wapping process. Carbon fiber prepregs layers are wrapped around a mandrel and onto the wrapping machine, it will be automatically wrapped as a tube, then wrapped with a thin plastic film. After the part has cured, the mandrel is extracted and the plastic film is removed.
The sizes of roll wrapped carbon fiber tubes can vary greatly, from small diameter tubes to larger ones used in industrial applications. The length of the tube is typically limited by the size of the mandrel used in the manufacturing process.
Specifications – We produce composite tubes of various dimensions for many applications. Diameter up to 500mm, and length up to 4m.
Maximum Strength and Stiffness – the use of prepreg materials and the ability to precisely control fiber orientation results in maximizing the performance of carbon fiber or composite tubes.
Roll wrapped carbon fiber tubes offer a cost-effective solution for lightweight and high-performance structures, making them a popular choice in many industries. Roll wrapped carbon fiber tubes are commonly used in industries such as robotics, UAV, sports goods, photography equipment, and automotive, where they offer high strength and stiffness, while still being lightweight.
