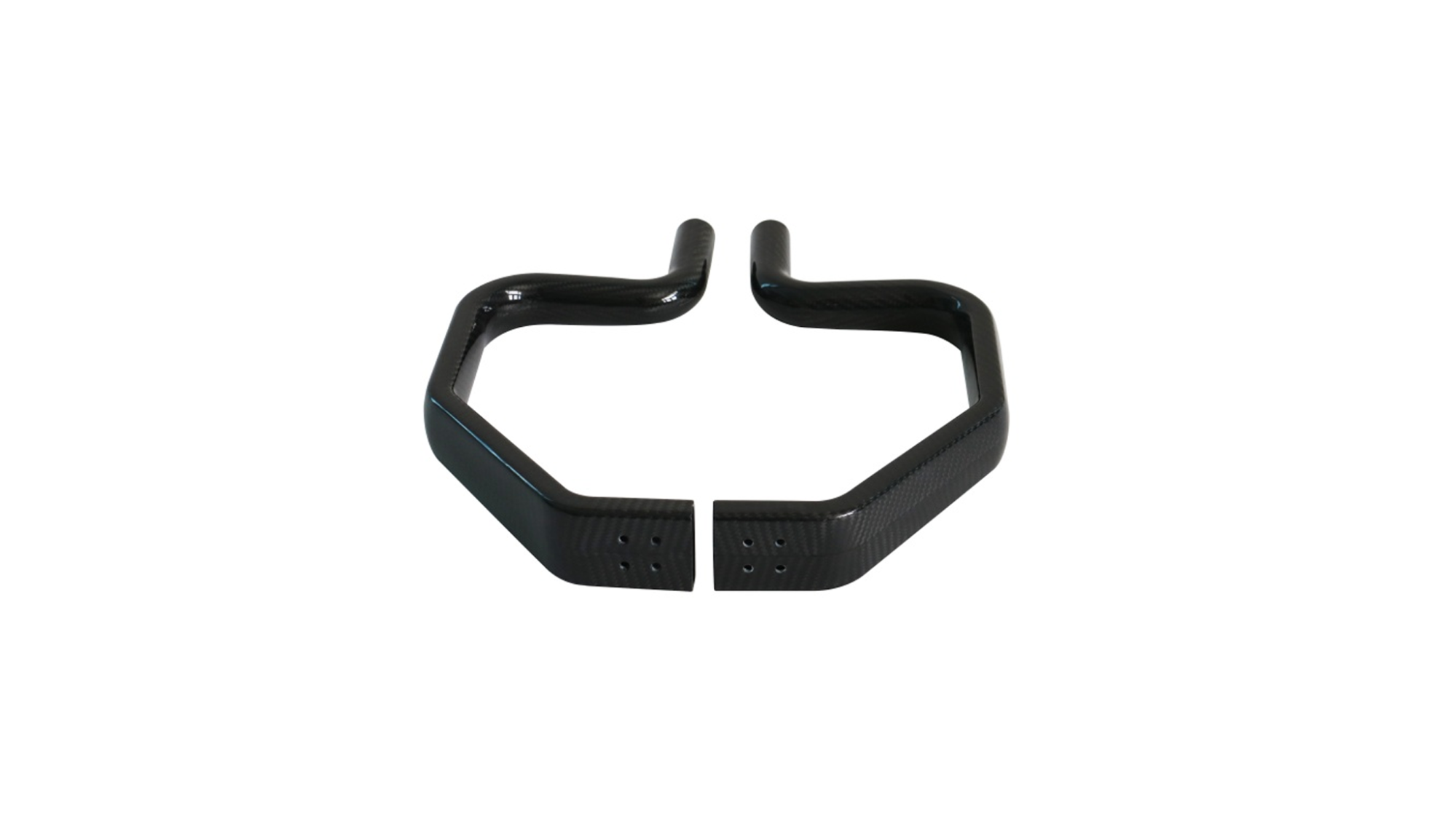

Xinbo Composites produces oval carbon fiber tubes with a major axis up to 100mm for OEM buyers in the UAV, robotics, marine, motorsport, and sporting equipment manufacturing sectors. Each tube is produced to the buyer’s drawing at Xinbo’s ISO 9001-certified factory in Shenzhen using filament winding or compression molding, with major and minor axis dimensions, wall thickness, fiber grade, and surface finish specified per application requirement.
Oval cross-sections are specified where a round tube would generate unnecessary aerodynamic drag, where the load path is predominantly in one axis, or where an assembly envelope requires a profile wider in one direction than the other. This page covers Xinbo’s manufacturing processes for oval tubes, OEM applications, and what every drawing must include for an accurate quote.
Filament Winding and Compression Molding: How Xinbo Produces Oval Carbon Fiber Tubes
Xinbo produces oval carbon fiber tubes by two processes: filament winding and molding. Filament winding is used for larger oval cross-sections where hoop strength and axial compression rigidity are the primary requirements: resin-impregnated carbon fiber tows are wound onto an oval mandrel at precise angles under CNC control and cured under heat. Compression molding is used where tight dimensional control is required: prepreg plies are laid up in a matched steel mold and cured under heat and pressure to the specified cross-section.
| Property | Filament Winding | Compression Molding |
| Best Suited For | Larger oval sections; hoop strength and axial rigidity applications | Precision oval profiles requiring tight dimensional control on both axes |
| Surface Quality | Smooth inside; winding pattern visible on outer surface | Excellent on all faces |
| Fiber Alignment | CNC-controlled winding angle | 0°/90° or ±45° prepreg layup |
| Typical OEM Use | Structural mast tubes; large-section aerodynamic profiles | UAV boom arms; robotic links; motorsport chassis tubes |
| Process Selection | Confirm at inquiry for larger cross-sections | Standard for oval tubes up to 100mm major axis |
| Specification | Range / Options |
| Major Axis | Specified on drawing; maximum 100mm |
| Wall Thickness | 1mm – 10mm |
| Length | Up to 3000mm; custom lengths to drawing |
| Tolerance: Raw | ±0.1mm on both axes |
| Tolerance: Polished | ±0.02mm – ±0.05mm on both axes |
| Fiber Grade | Standard Modulus / Intermediate Modulus / High Modulus / Ultra High Modulus |
| Weave Pattern | 2×2 Twill / Plain Weave / Unidirectional (UD) |
| Surface Finish | Raw / Polished / Glossy Clear Coat / Matte Clear Coat |
OEM Applications: Where Oval Carbon Fiber Tubes Are Specified
Oval carbon fiber tubes are specified by OEM engineers in applications where the cross-sectional geometry reduces aerodynamic drag or fits a constrained assembly envelope. For UAV manufacturers designing boom arms, and for marine equipment OEM suppliers building boom and mast sections, the oval profile produces significantly less drag than a round tube of equivalent structural cross-section. In robotic arm assemblies, oval tubes retain the required bending stiffness in the load-carrying axis while minimizing cross-section in the perpendicular direction. Xinbo’s carbon fiber drone arms page covers UAV-specific arm configurations.
| OEM Application | Major Axis Range | Wall Thickness | Fiber Grade | Surface Finish |
| UAV Aerodynamic Boom Arms | 15mm – 40mm | 1mm – 2mm | Intermediate Modulus | Raw or Matte Clear Coat |
| Bicycle Frame OEM Tubes | 25mm – 80mm | 1.5mm – 3mm | Standard / Intermediate Modulus | Glossy Clear Coat |
| Robotic Structural Links | 20mm – 60mm | 1.5mm – 3mm | Intermediate / High Modulus | Polished |
| Marine Boom and Mast Sections | 30mm – 100mm | 2mm – 5mm | Standard Modulus | Matte Clear Coat |
| Motorsport Chassis Tubes | 25mm – 70mm | 2mm – 4mm | Intermediate Modulus | Raw |
| Camera Boom Arms | 15mm – 35mm | 1mm – 2mm | Standard Modulus | Glossy Clear Coat |
| Sporting Equipment OEM Shafts | 20mm – 35mm | 1mm – 2mm | Standard / Intermediate Modulus | Matte Clear Coat |
Dimension ranges above are typical OEM specifications for each application type. Xinbo accepts all drawings within the standard production envelope. Xinbo’s oval carbon fiber tube product page lists additional configuration options including Kevlar hybrid layups and CNC machining.
Drawing Requirements: What Xinbo Needs to Quote Oval Carbon Fiber Tubes
Oval carbon fiber tube drawings require both cross-section dimensions to be specified, not just the major axis. The most common error on first-time orders is omitting the minor axis or failing to state the oval’s orientation relative to the load-carrying axis. For assembly applications where the tube must fit inside a housing, both axes must carry individual tolerance callouts. Send drawings to Xinbo’s engineering team with major and minor axis dimensions, wall thickness, length, and fiber grade to receive a production lead time and unit price.
| Drawing Parameter | Required | Notes |
| Major Axis | Required | Include tolerance if tighter than ±0.1mm |
| Minor Axis | Required | Must be specified; cannot be inferred from major axis alone |
| Wall Thickness | Required | Uniform wall assumed unless otherwise specified |
| Length | Required | Custom lengths to drawing |
| Fiber Grade | Required | Standard Modulus applied as default if unspecified |
| Weave Pattern | Optional | 2×2 Twill default; UD available for high axial stiffness |
| Fiber Orientation / Layup | Optional | 0°/90° default; ±45° for torsion-dominated loads |
| Surface Finish | Required | Raw, Polished, Glossy Clear Coat, or Matte Clear Coat |
| CNC / Machining | Optional | Drilling, cutting, slotting, and threading available |
Frequently Asked Questions
What cross-section sizes are available for oval carbon fiber tubes at Xinbo?
Xinbo produces oval carbon fiber tubes with a major axis up to 100mm. Both the major and minor axes are specified by the OEM buyer on the drawing; Xinbo does not supply standard off-the-shelf oval cross-sections.
What is the minimum wall thickness for oval carbon fiber tubes?
The minimum wall thickness is 1mm. For applications requiring walls thinner than 1mm, Xinbo’s engineering team will confirm the achievable minimum at the drawing stage based on the specific major-to-minor axis ratio.
How should major and minor axis dimensions be specified on a drawing?
Both dimensions must appear on the drawing with individual tolerance callouts. The drawing should also indicate the orientation of the oval relative to the load axis so Xinbo’s engineering team can confirm the fiber layup direction.
Does Xinbo supply oval carbon fiber tubes in Kevlar hybrid for impact-resistant OEM applications?
Yes. Carbon and Kevlar hybrid layups are available for oval tubes where impact resistance is required alongside structural stiffness, including sporting equipment shafts and marine boom sections.
Xinbo Composites supplies custom oval carbon fiber tubes to OEM buyers in 100+ countries.
Request a quote with your drawing or specification sheet.
