Xinbo Composites uses autoclave molding to customize the highest quality carbon fiber parts to meet our customers’ project needs.
Autoclave molding offers some advantages including high performance, quality control, and consolidation. Autoclave molding is a critical process for producing advanced carbon fiber components used in automotive, automation industrial, aerospace, medical, and other industries that require high-performance materials for finished products.
Autoclave molding eliminates bubbles and pinholes during the manufacturing process. It gives a perfect finish to enhance its cosmic appearance

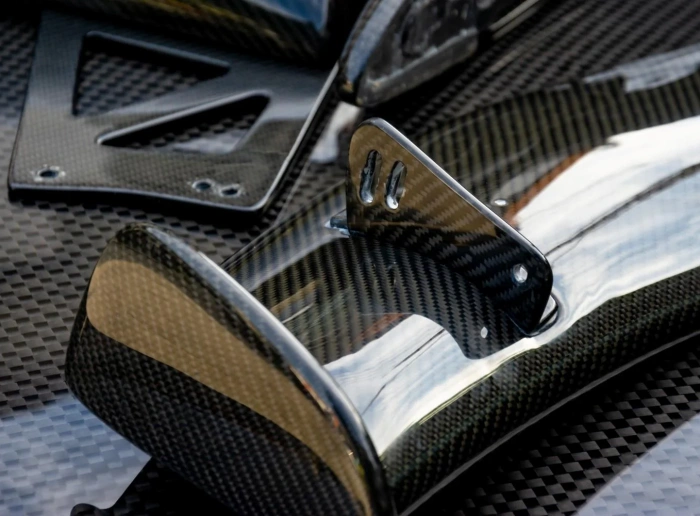

Autoclave molding is used to manufacture automotive components. Applying controlled heat and pressure allows manufacturers to produce incredibly stronger, lightweight components such as automotive interior and exterior parts, intake and exhaust pipe systems, and energy machine parts. This improves fuel efficiency, reduces emissions and enables more aerodynamic designs.
Here are the autoclave molding process steps
- Preparation of Materials
The process begins with the preparation of composite materials, typically consisting of reinforcement fibers (like carbon or glass) and a resin matrix. These materials are often pre-impregnated with resin, known as prepregs, ensuring uniform resin distribution during curing. - Cutting Prepregs
CNC cutting machine cutting carbon fiber prepregs’ shape according to the procedure set, ensures cutting efficiency and the smoothness of the cutting surface. It can minimize the possibility of heat exposure and damage prepares. - Lay-up of carbon fiber prepregs
We put the release agent on the surface of the mold first and lay up carbon fiber prepregs and layers are placed over a mold in a specific sequence to achieve the desired structural properties.
Autoclave Molding Carbon Fiber Parts - Vacuum Bagging
Once the lay-up is complete, the materials and mold are covered with a sealed vacuum bag. When the vacuum is applied inside the bag, trapped air is removed, minimizing voids and ensuring proper bonding between the fibers and the resin. - Autoclave Curing
The vacuum-bagged sealed mold is placed in the autoclave, a pressure chamber that applies heat and pressure to carbon fiber prepregs. The autoclave provides a controlled environment where the temperature and pressure can be precisely regulated. The heat catalyzes the curing of the resin to flow and bond with the fibers, and the pressure helps compress the material, which supports bonding between the layers. - Cooling Phase
After the holding time, the autoclave is gradually cooled to room temperature while maintaining pressure to avoid warping or deforming the material - Pressure Release and Unbagging
When the autoclave reaches room temperature, the pressure is carefully released. The vacuum bag is removed, and the cured composite part is demolded from the mold. - Post-Curing and Machining
Some composites may require a post-curing step outside the autoclave to achieve their final properties. Machining or other finishing processes are also applied to meet certain specifications. - Inspection and Quality Control
The final step involves thoroughly inspecting the composite part to ensure it meets design and quality specifications. Techniques such as ultrasonic testing, or visual inspections are commonly used. - Additional Services
We also supply optional services, such as trimming, CNC machining, coating, bonding and assembling metal or plastic parts, and Logo printing.
If you want to develop high-quality carbon fiber parts projects, please contact us.
