Introduction
Modern manufacturing is driven by the need for materials that are not only strong and lightweight but also adaptable to a variety of demanding applications. Roll-wrapped carbon fiber tubes have emerged as a key solution, offering a combination of performance, precision, and versatility that traditional materials cannot match. For professionals across sectors such as robotics, automotive, aerospace, and industrial automation, understanding the unique advantages of roll-wrapped carbon fiber tubes is essential for informed material selection and process optimization.
The Roll-Wrapped Carbon Fiber Tube: Manufacturing and Features

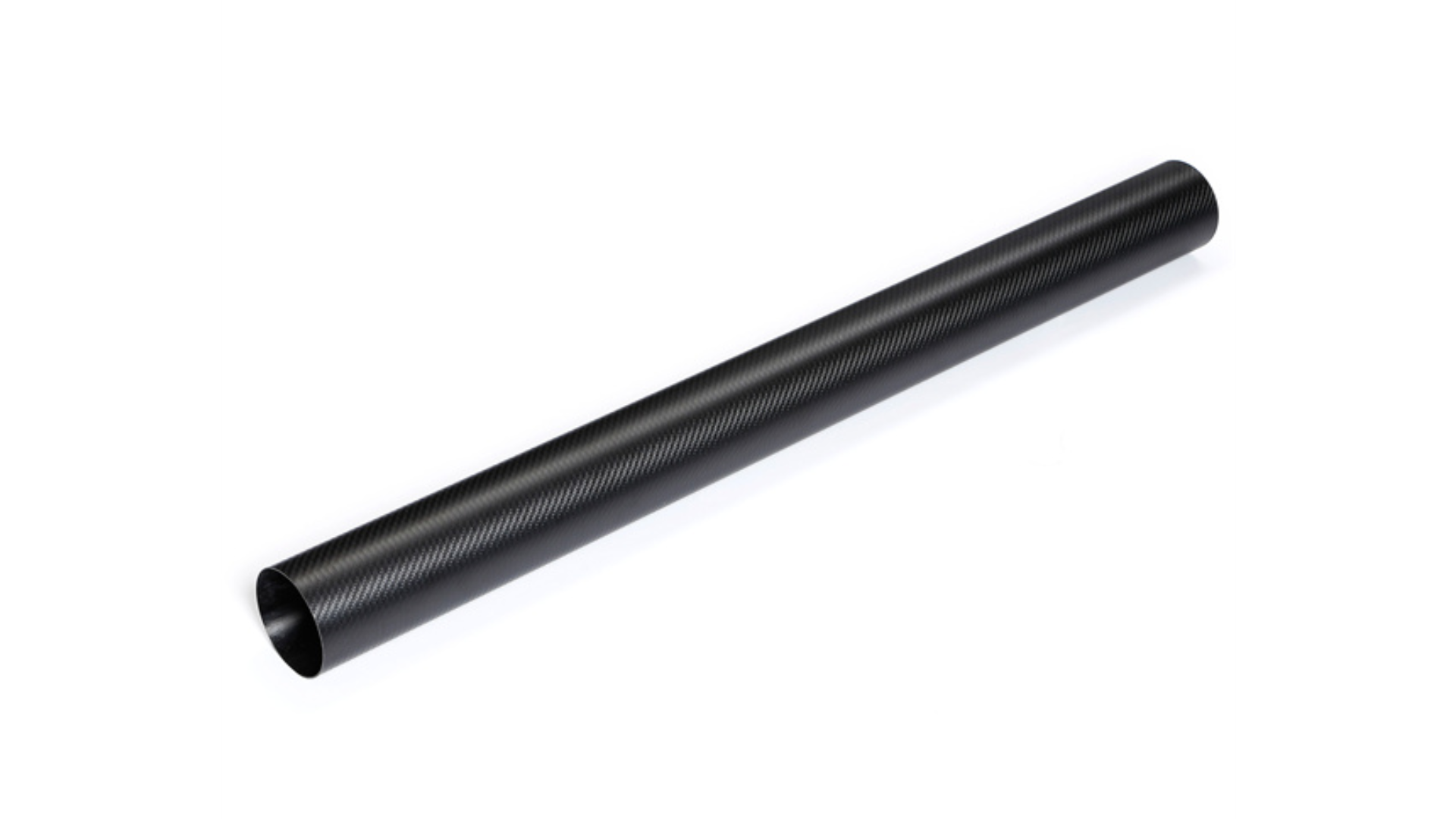

The roll-wrapping process involves wrapping layers of carbon fiber prepreg around a mandrel, followed by curing and the removal of the mandrel and protective film. This method allows for precise control over fiber orientation and tube dimensions, resulting in a product that can be tailored to exacting specifications. Roll-wrapped carbon fiber tubes are available in a broad range of diameters, wall thicknesses, and lengths and can be finished in raw, polished, glossy, or matte clear-coated surfaces. Patterns such as unidirectional, twill, or plain weave further enhance customization, allowing manufacturers to meet diverse application requirements.

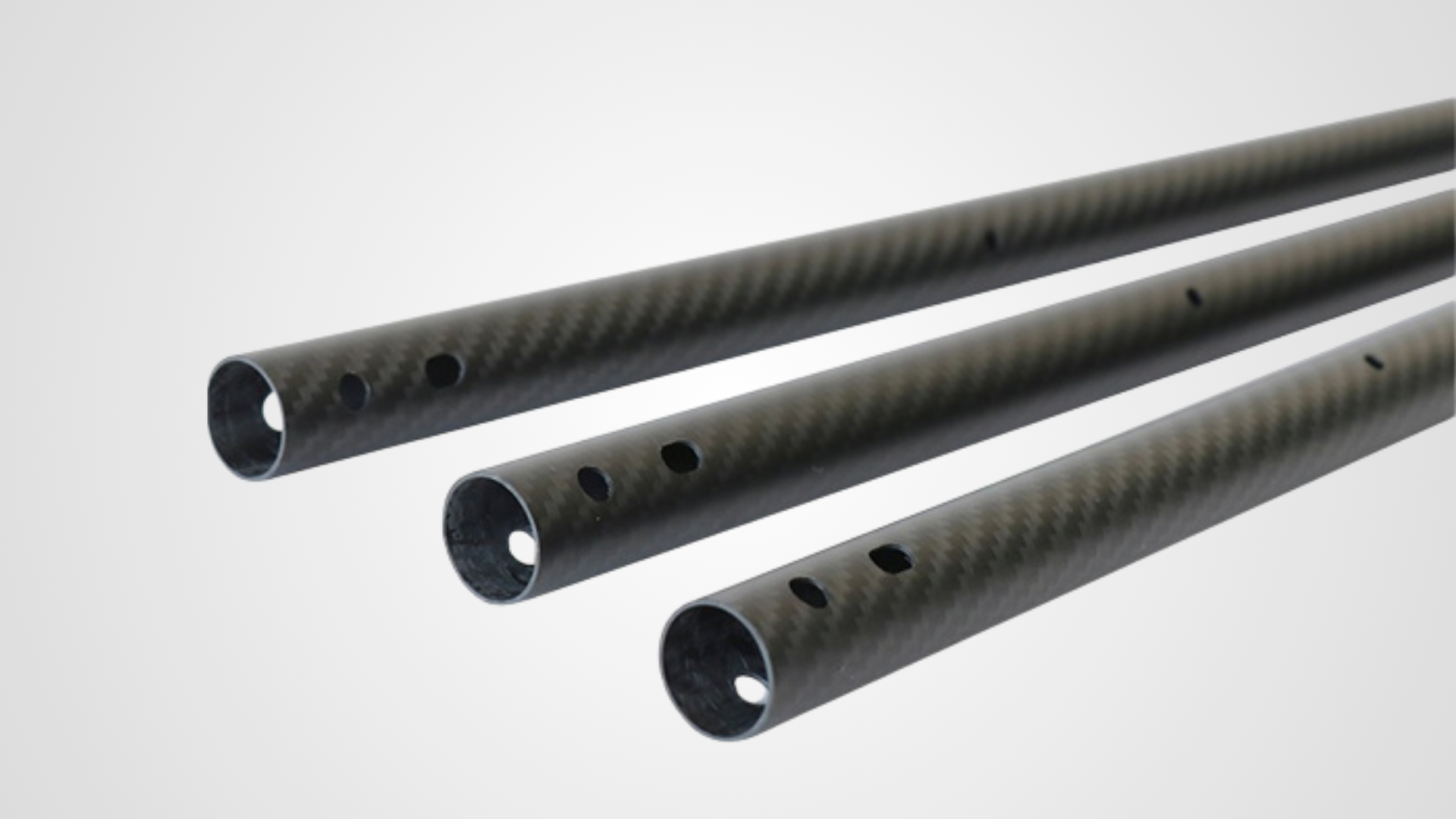

Advanced CNC machining capabilities enable additional customization, including drilling, cutting, grinding, slotting, and milling. Tubes can also be bonded with aluminum or plastic components, supporting complex assemblies and hybrid structures.Key Advantages in Modern Manufacturing
1. Exceptional Strength-to-Weight Ratio
One of the most significant benefits of roll-wrapped carbon fiber tubes is their superior strength-to-weight ratio. Compared to metals like steel and aluminum, carbon fiber tubes deliver comparable or greater strength at a fraction of the weight. This property is crucial in industries where reducing mass leads to improved efficiency, higher payloads, or enhanced performance, such as aerospace, UAVs, and automotive engineering.
2. Precision in Fiber Orientation
The roll-wrapping process allows for meticulous control of fiber alignment. By adjusting the angle and sequence of fiber layers, manufacturers can optimize tubes for specific load scenarios, whether axial, radial, or torsional. This level of customization ensures that each carbon fiber round tube is engineered to deliver maximum performance for its intended application, from robotic arms to structural supports.
3. Tight Dimensional Tolerances
Roll-wrapped carbon fiber tubes can be manufactured to very tight tolerances, with outer diameter variances as low as ±0.02 mm for polished tubes. This precision is vital for applications where components must integrate seamlessly with other parts, particularly in automated manufacturing environments or high-precision assemblies.
4. Corrosion and Chemical Resistance
Unlike metals, carbon fiber composite tubes are inherently resistant to corrosion and most chemicals. This makes them ideal for use in harsh environments, including marine, chemical processing, and outdoor applications. The result is a longer service life and reduced maintenance requirements, contributing to a lower total cost of ownership.
5. Versatile Surface Finishes and Aesthetic Options
Roll-wrapped carbon fiber tubes can be finished in a variety of ways to meet both functional and aesthetic needs. Whether a raw, matte, or high-gloss finish is required, these options allow manufacturers to align the product’s appearance with branding or application-specific requirements, an important consideration in consumer-facing industries such as sports equipment and electronics.
6. Integration with Other Materials
Modern manufacturing often requires the integration of multiple materials within a single assembly. Roll-wrapped carbon fiber tubes can be securely bonded with aluminum or plastic components using advanced adhesives, enabling the creation of hybrid structures that leverage the strengths of each material. This flexibility supports innovative design and broadens the range of possible applications.
Application Areas in Modern Manufacturing
Robotics and Automation:
The low weight and high rigidity of carbon fiber roll composite tubes make them ideal for robotic arms, frames, and end-effectors, where reduced inertia translates to faster, more precise movements.
Aerospace and UAVs:
In aerospace and unmanned aerial vehicles, every gram saved can extend range and payload capacity. Carbon fiber tubes provide the necessary structural integrity without the weight penalty of metals.
Automotive Engineering:
Automotive manufacturers use carbon fiber tubes for drive shafts, chassis components, and structural supports, achieving better fuel efficiency and compliance with stringent emission standards.
Sports and Photography Equipment:
The demand for lightweight, high-performance products makes carbon fiber round tubes a popular choice for bicycle frames, golf shafts, tripods, and boom arms.
Industrial Machinery:
In industrial settings, carbon fiber tubes are used for rollers, shafts, and guides, where their resistance to deformation and environmental durability ensure consistent, reliable performance.
Customization and Supplier Considerations
A reliable carbon fiber tube supplier should offer a wide range of options in terms of diameter, wall thickness, length, fiber modulus, and surface finish. The ability to provide advanced CNC machining and assembly with other materials is also critical for meeting the diverse needs of modern manufacturing. Technical support, quality control, and a proven track record in delivering customized solutions are essential factors when selecting a carbon fiber tubes manufacturer.
Conclusion
Roll-wrapped carbon fiber tubes have become indispensable in modern manufacturing, offering unmatched advantages in strength, weight reduction, precision, and versatility. Their adaptability across a wide range of industries underscores their value as a foundational material for next-generation products and systems. For organizations seeking a proven carbon fiber tube supplier with a robust track record in customization, technical excellence, and product consistency, Xinbo Composites stands out as a trusted partner in the field of carbon fiber roll composite tubes.
